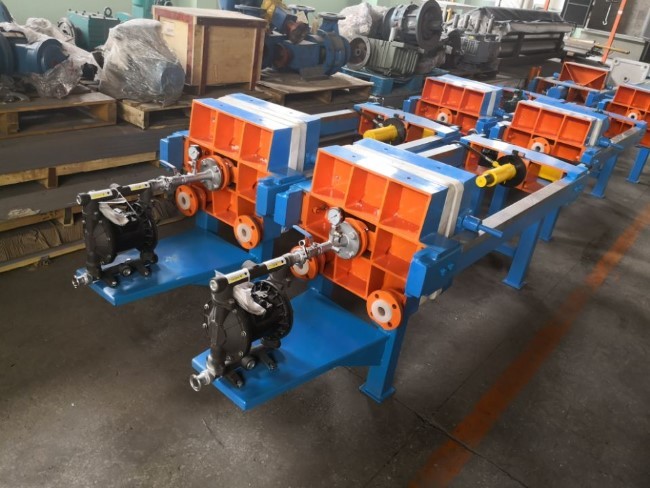

870*870 Filter Plate Hydraulic Chamber Filter Press For Oil Industry
Characteristic:
● reinforced polypropylene filter plate.
● adopt protective automatic plate pulling and unloading system.
● the hydraulic device is used as the power mechanism to compress and loosen the filter plate, with the maximum compression pressure of 25MPa and automatic pressure holding.
● the maximum filtration pressure is 0.5-1.0mpa to ensure the best conditions for forming filter cake and carry out pressurized filtration.
● simple and safe operation.
Application:
It is used for solid-liquid separation of various suspensions. It is widely used in coal, petroleum, chemical industry, metallurgy, medicine, light industry, food environmental protection, textile and other industries.
| Model | Filter Area | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) |
| L | B | D | H |
| X_M^AZ30/870−30U_K^B | 30 | 870*870 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 | 2360 | 700 | 1380 | 785 |
| X_M^AZ40/870−30U_K^B | 40 | 595 | 30 | 3050 | 3570*1400*1230 | 2750 |
| X_M^AZ50/870−30U_K^B | 50 | 748 | 38 | 3456 | 4110*1400*1230 | 3290 |
| X_M^AZ60/870−30U_K^B | 60 | 902 | 46 | 4003 | 4550*1400*1230 | 3730 |
| X_M^AZ70/870−30U_K^B | 70 | 1056 | 54 | 4584 | 4990*1400*1230 | 4170 |
| X_M^AZ80/870−30U_K^B | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | 4610 |
| X_M^AZ50/870−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4128 | 4040*1500*1400 | 3120 | 780 | 1480 | 870 |
| X_M^AZ60/870−30U_K^B | 60 | 889 | 34 | 4636 | 4460*1500*1400 | 3480 |
| X_M^AZ70/870−30U_K^B | 70 | 1041 | 40 | 5143 | 4760*1500*1400 | 3840 |
| X_M^AZ80/870−30U_K^B | 80 | 1193 | 46 | 5651 | 5120*1500*1400 | 4200 |
| X_M^AZ100/870−30U_K^B | 100 | 1475 | 57 | 6628 | 5780*1500*1400 | 4860 |
| X_M^AZ120/870−30U_K^B | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | 5580 |
| X_M^AZ100/1250−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 8307 | 5020*1800*1600 | 3970 | 850 | 1740 | 995 |
| X_M^AZ120/1250−30U_K^B | 120 | 1746 | 43 | 9308 | 5470*1800*1600 | 4430 |
| X_M^AZ140/1250−30U_K^B | 140 | 2063 | 51 | 10455 | 5990*1800*1600 | 4950 |
| X_M^AZ160/1250−30U_K^B | 160 | 2341 | 58 | 11492 | 6450*1800*1600 | 5400 |
| X_M^AZ180/1250−30U_K^B | 180 | 2619 | 65 | 12494 | 6905*1800*1600 | 5860 |
| X_M^AZ200/1250−30U_K^B | 200 | 2896 | 72 | 13504 | 7360*1800*1600 | 6310 |
| X_M^AZ220/1250−30U_K^B | 220 | 3214 | 80 | 14652 | 7880*1800*1600 | 6830 |
| X_M^AZ250/1250−30U_K^B | 250 | 3650 | 91 | 16227 | 8600*1800*1600 | 7550 |
| X_M^AZ200/1500−35U_K^B | 200 | 1500*1500 | 35 | 2998 | 49 | ≥0.6 | 7.5 | 20030 | 6400*2200*1900 | 5250 | 1170 | 1990 | 1070 |
| X_M^AZ250/1500−35U_K^B | 250 | 3594 | 61 | 22978 | 7225*2200*1900 | 6090 |
| X_M^AZ300/1500−35U_K^B | 300 | 4347 | 74 | 26026 | 8130*2200*1900 | 6990 |
| X_M^AZ350/1500−35U_K^B | 350 | 5043 | 86 | 29220 | 8950*2200*1900 | 7840 |
| X_M^AZ400/1500−35U_K^B | 400 | 5796 | 99 | 32574 | 9880*2200*1900 | 8750 |
| X_M^AZ450/1500−35U_K^B | 450 | 6492 | 111 | 35586 | 10690*2200*1900 | 9590 |
| X_M^AZ500/1500−35U_K^B | 500 | 7187 | 123 | 38606 | 11560*2200*1900 | 10430 |
| X_M^AZ600/2000−40U_K^B | 600 | 2000*2000 | 40 | 8926 | 85 | ≥0.6 | 15 | 49000 | 11100*3000*2500 | 9200 | 1660 | 2000 | 1050 |
| X_M^AZ700/2000−40U_K^B | 700 | 10380 | 99 | 53000 | 12200*3000*2500 | 10300 |
| X_M^AZ800/2000−40U_K^B | 800 | 11210 | 107 | 57000 | 13350*3000*2500 | 11450 |
| X_M^AZ900/2000−40U_K^B | 900 | 13290 | 127 | 61000 | 14500*3000*2500 | 12600 |
| X_M^AZ1000/2000−40U_K^B | 1000 | 14740 | 141 | 65000 | 15600*3000*2500 | 15600 |
Technical Features
- Inverter motor pull plate;
- Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
- The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
- The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.
Industry
It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.
